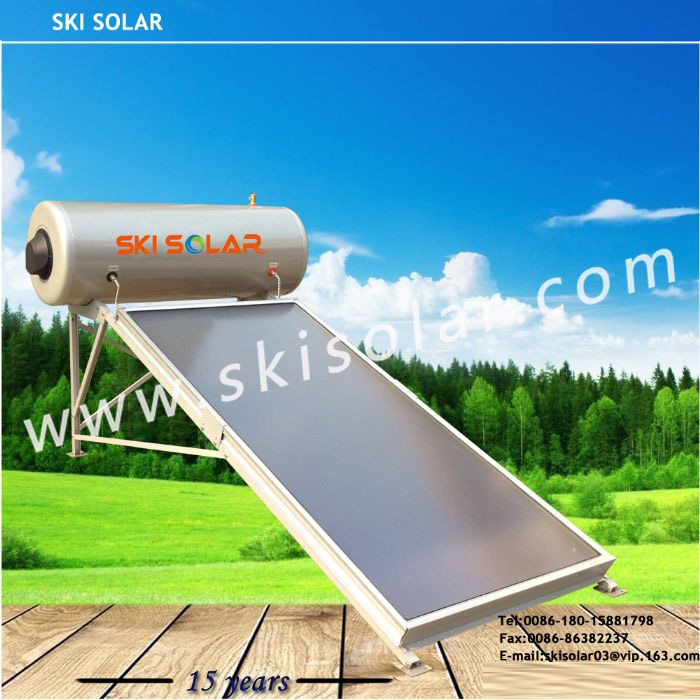

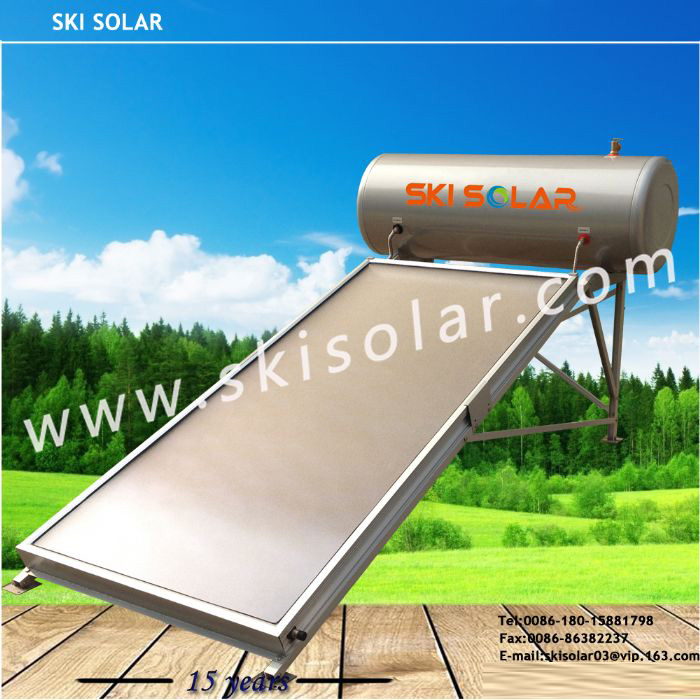

Thermosiphon solar water heater provides heat through an efficient copper coil. It's different from normal water heater. Hot water is reserved in the heat storage tank. When cold water goes through copper tube, it’ll be heated by heated water in the tank. It can supply hot water all day even in bad weather. Thermosiphone solar collector is not allowed to be connected directly with pressure water. Tank installation depends on local areas.
Specifications
Inner tank: Titanium Steel, 2mm thick and Enamel Coating, 0.5mm thick.
Outer tank: Colored Steel Sheet, 0.32 mm thick.
Insulation layer: Polyurethane foam, thickness: 55mm.
Coil material: copper, diameter,φ16mm; thickness, 0.8mm
Frame: Adopt stainless steel, which is UV-resist and Corrosion-resist and suitable for different roof. Thickness: 1.5mm.
|
Dimension L*W*T
|
2000mmX1000mmX80mm
|
|
Gross area
|
2.00m2
|
|
Aperture area
|
1.84m2
|
|
Absorber area
|
1.73m2
|
|
Cover
|
Tempered Glass
|
|
Cover transmission
|
89%
|
|
Absorptance
|
≥92%
|
|
Emission
|
≤8%
|
|
Net weight
|
35kg
|
|
Surface treatment
|
chrome plating
|
|
Absorber material
|
TP2 copper
|
|
Insulation
|
Rock wool, glass fiber cotton (black backing) & polyurethane compound
|
|
Insulation thickness
|
Back:45mm; Side:20mm
|
|
Border
|
Aluminum alloy
|
|
